DISCOVER THE DIFFERENCE

Laser Tattoo Removal

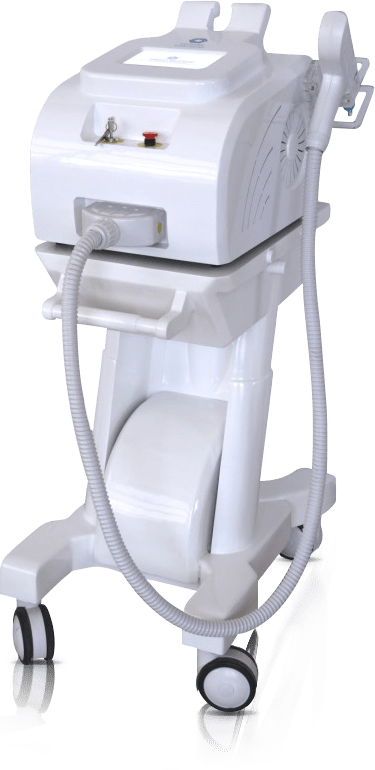

Photo Biotech Q-100 is a totally new design against traditional laser concept.

Canadian Engineering
1064nm For Black, Dark Blue, Dark Green
532nm For Red, Yellow, Pink, Permanent Make-up
755nm For Teal, Light Blue, Light Green
1320 Skin Rejuvenation, Skin Tightening
10 Hz Frequency
Powerful Energy Output 1.6 Joules
Collagen Stimulation, Carbon Blasting

Three Year Warranty

Heavy Duty Commercial Grade

German Engineering

1,000,000 Shot Count System

No
Consumables

Tattoo Removal Is All About Power

Photo Biotech Q100, Q-Switch, Probe hand-piece is constructed as a power containment device and acutely controlled power emitter. Therefore, minimal power is required is to produce the adequate and necessary 1.6 joule pulse output. Hence a smaller base unit is required for power generation.

Photo Biotech Q-100 is a totally new design against traditional laser concept, to provide high performance laser functionalities in a very compact design.

This laser system is benefited by multiple unique designs including: the special Q-switch component and optimized polarizer cavity and a very light and small handheld probe laser distribution technology. This ensures a stable and uniformly distributed laser beam that emits PURE 1064nm or 532nm laser beam, so as to achieve the best treatment result.

Mechanism

LASER ACTION TATTOO REMOVAL

The energy density (fluence), expressed as joules/cm2, is determined prior to each treatment as well as the spot size and repetition rate (hertz).

Tattoos consist of thousands of particles of tattoo pigment suspended in the skin. While normal human growth and healing processes will remove small foreign particles from the skin, tattoo pigment particles are permanent because they are too big to be removed. Laser treatment causes tattoo pigment particles to heat up and fragment into smaller pieces. These smaller pieces are then removed by normal body processes.

REQUEST A QUOTE

Methodology Of Laser Tattoo Removal

Laser Tattoo Removal

Q100 (LASER) uses the principle of selective photo-thermolysis. Quality-switching (Q-switching) is a means of creating very short pulses (5−100 ns) with extremely high peak powers. The QS lasers also produce an additional photo-acoustic effect, which results from the generation of shock waves following laser irradiation. Such waves then cause vibrational damage to cellular structures and rupture membranes, thereby disrupting melanosomes and tattoo ink particles safely

QS Neodymium

yttrium-aluminum-garnet (Nd:YAG) laser 1064 nm emits light that penetrates 2−3 mm into dermis and hence is suitable for deeper dermal pigmentation such as found in nevus of Ota.

By passing the beam through the potassium-titanyl-phosphate (KTP) crystal, the frequency is doubled and the wavelength is halved (532 nm). A shorter wavelength penetrates less deeply and therefore is more useful for removal of epidermal pigment and lesions.

Photo Biotech Easy To Use Preset Software

Preset software includes: Pulse width or pulse duration are critical laser parameters. Q100 switched lasers has the appropriate pulse durations for tattoo removal. The shorter pulses are a safer and more efficient removal method because the peak power of the pulse is greater. Spot size, or the width of the laser beam, affects treatment. Fluence or energy density is another important consideration. Fluence is measured in joules per square centimeter (J/cm). It is important to be treated at high enough settings to fragment tattoo particles. All Photo Biotech technology comes with advance yet simplified easy to use functions; minimizing the need to memorize every possible energy parameter.

Theory Of Laser Tattoo Removal

Photo Biotech Q-100

Tattoo removal is most commonly performed using lasers that break down the ink particles in the tattoo. The broken-down ink is then absorbed by the body, mimicking the natural fading that time or sun exposure would create.

All tattoo pigments have specific light absorption spectra. Photo Biotech Q-100 capable of emitting adequate energy within the given absorption spectrum of the pigment to provide an effective treatment.

REQUEST A QUOTE

Support Included

Photo Biotech backs our products and customers. With a 3 year warranty and included comprehensive training and certification Photo Biotech extends further customer support with an extensive marketing kit professionally designed to illuminate the superior technological aspects and highlight the optimal results. The informative material will 'kick-start' and introduce this professional hardware for new and existing clientele.

HD TV with video loop demonstating the treatment

Standing Banner

TriFold brochure to place the reception desk

4x6 post card for mail drop (direct marketing)

Content access: images and files

Print Media Kit

Growth Market Breakdown

Market Value

The tattoo removal market is expected to reach USD $5 Billion by 2023

There are approximately 21,000 tattoo studios in the US ans Canada.

Tattoos which are, on average, 4 x 4 inches or smaller.

These tattoos have historically been black-ink, yet we have recently witnessed an explosion in vibrant, multi-color tattoos.

Three Year Warranty

Heavy Duty Commercial Grade

German Engineering

1,000,000 Shot Count System

No
Consumables

Parameters that Affect Results

Several colors of laser light (measured as wavelengths of laser energy) are used for tattoo removal, from visible light to near-infrared radiation. Different lasers are better for different tattoo colors. Consequently, multi-color tattoo removal almost always requires the use of two or more laser wavelengths. Tattoo removal lasers are usually identified by the lasing medium used to create the wavelength (measured in nanometers (nm)):

Q-switched Frequency-doubled: 532 nm. This laser creates a green light which is highly absorbed by red and orange targets. Useful primarily for red and orange tattoo pigments, this wavelength is also highly absorbed by melanin (the chemical which gives skin color or tan) which makes the laser wavelength effective for age spot or sun spot removal.

Q-switched: 1064 nm. This laser creates a near-infrared light (invisible to humans) which is poorly absorbed by melanin, making this the only laser suitable for darker skin. This laser wavelength is also absorbed by all dark tattoo pigments and is the safest wavelength to use on the tissue due to the low melanin absorption and low hemoglobin absorption. This is the wavelength of choice for tattoo removal in darker skin types and for black ink.

Procedure Pricing & Monetization

SPECIFICATIONS

Specifications

Type of Laser Solid-State Q-switch Nd:YAG Laser

Wavelength 1064nm, 532nm and 1320nm , 755nm is available

Output Energy 1600MJ

Pulse Duration 8-10ns

Frequency 1-10Hz

Power Supply AC220V 50Hz/AC 110V 60HZ

Package Size 63*51*61cm

Gross Weight 25Kg

DISCOVER THE DIFFERENCE

Flexible Financing Available
from $949 a Month

REQUEST A QUOTE

Q100 Reviews

See What Our Customers Say About Us

W.Sumara

★★★★★

If you are looking for some awesome, knowledgeable people to work with, these are the guys I highly recommend. Their friendliness and result-driven approach is what I love about them.

Beth M Wray

★★★★★

I have been using the Smart IPL and Diode laser the most. My customers achieve really good results and I feel confident in the treatments I offer. The diode hair removal is the BEST! I really don't have a lot of hair to remove on myself but the result I see on my customers are amazing they are amazed and so and I. I have used the Q-Switch a couple of times on the same customer and she is getting results too - the tattoo is disappearing and should be gone in the next visit.

Geeta. Skin Perfection

★★★★★

Good Machine! Expensive But one of the best out there. Its safe and effective. Working on buying a second one in the future (maybe I can get a discount on my second!) agree with previous review its a heavy machine - but in a good way!
